Implementare completa a unei platforme de securitate fizica bazate pe Hikvision HikCentral Professional pentru un obiectiv industrial cu trafic mixt de personal si autovehicule. Proiectul acopera trei arii principale: control acces biometric prin cititoare de amprenta, supraveghere ANPR cu recunoastere automata a numerelor de inmatriculare si un modul de pontaj integrat cu programe de lucru pe ture, pauze reglementate si rapoarte exportabile. Toate subsistemele sunt gestionate centralizat dintr-o singura consola, cu monitorizare in timp real si sistem de alarme configurat.
Full deployment of a physical security platform built on Hikvision HikCentral Professional for an industrial facility with mixed personnel and vehicle traffic. The project covers three main areas: biometric access control via fingerprint readers, ANPR surveillance with automatic license plate recognition, and an integrated time & attendance module with shift-based schedules, regulated breaks, and exportable reports. All subsystems are centrally managed from a single console, with real-time monitoring and a configured alarm system.

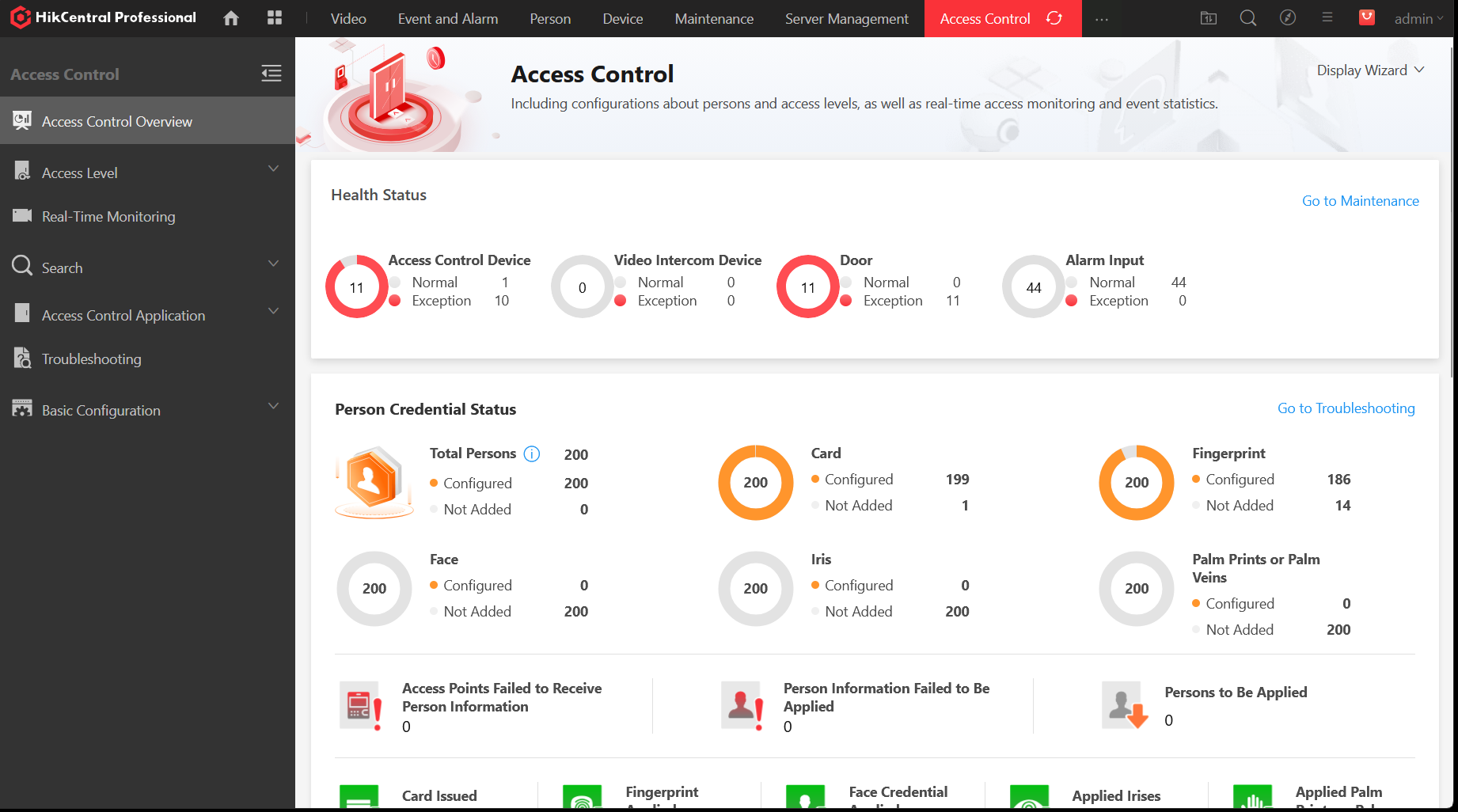

ACCESS CONTROL
11 cititoare biometrice configurate pe punctele de acces. 200 persoane inrolate cu carduri si amprente, organizate in 10 departamente cu permisiuni diferentiate.
11 biometric readers deployed at access points. 200 persons enrolled with cards and fingerprints, organized across 10 departments with differentiated permissions.

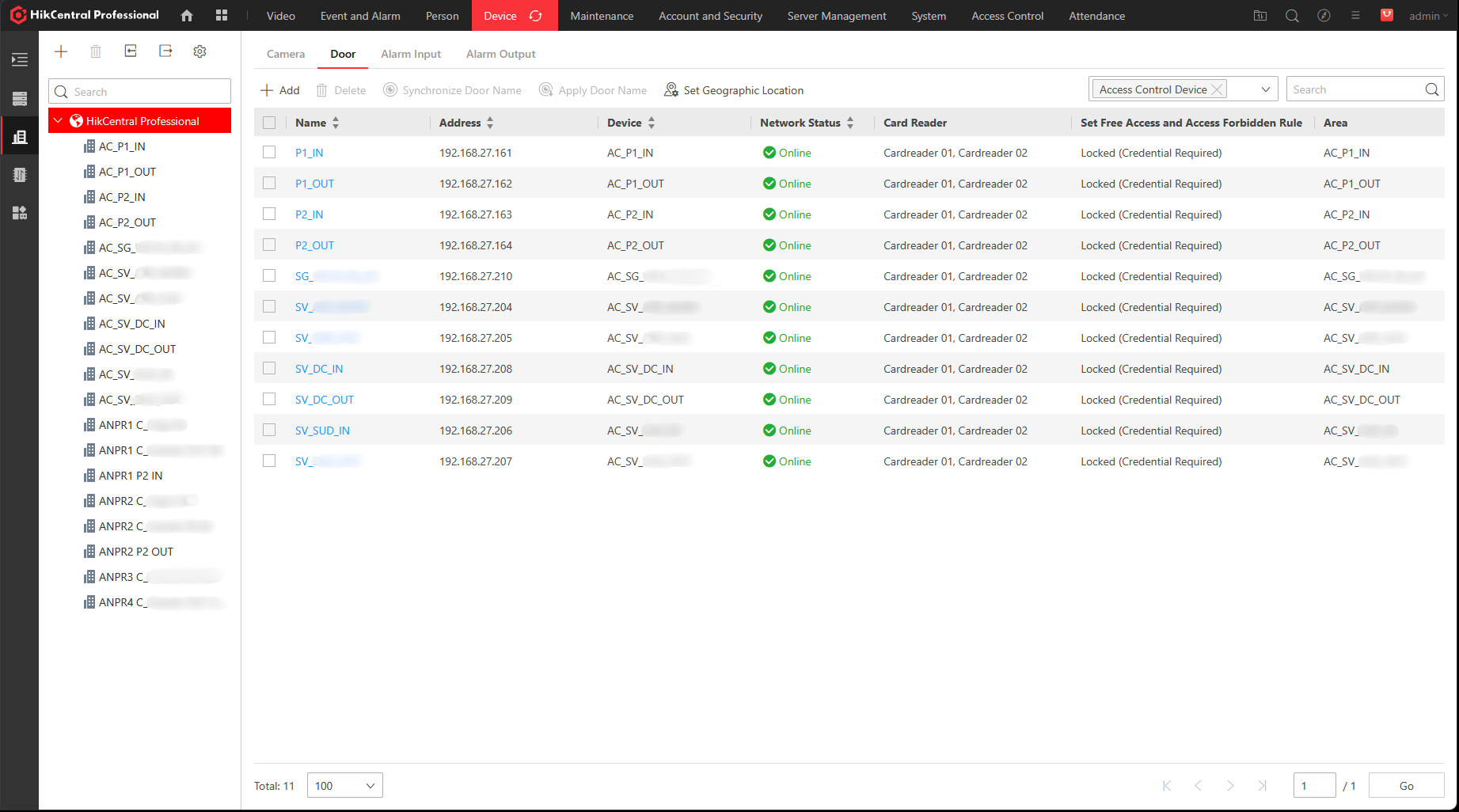

- 11 cititoare · 11 usi · 44 alarm inputsreaders · 11 doors · 44 alarm inputs
- 200 persoane · 199 carduri · 186 amprentepersons · 199 cards · 186 fingerprints
- 8 niveluri de acces — Assign by Level/Dept/Person/Groupaccess levels — Assign by Level/Dept/Person/Group
- Real-time monitoring + jurnal acces completReal-time monitoring + full access log

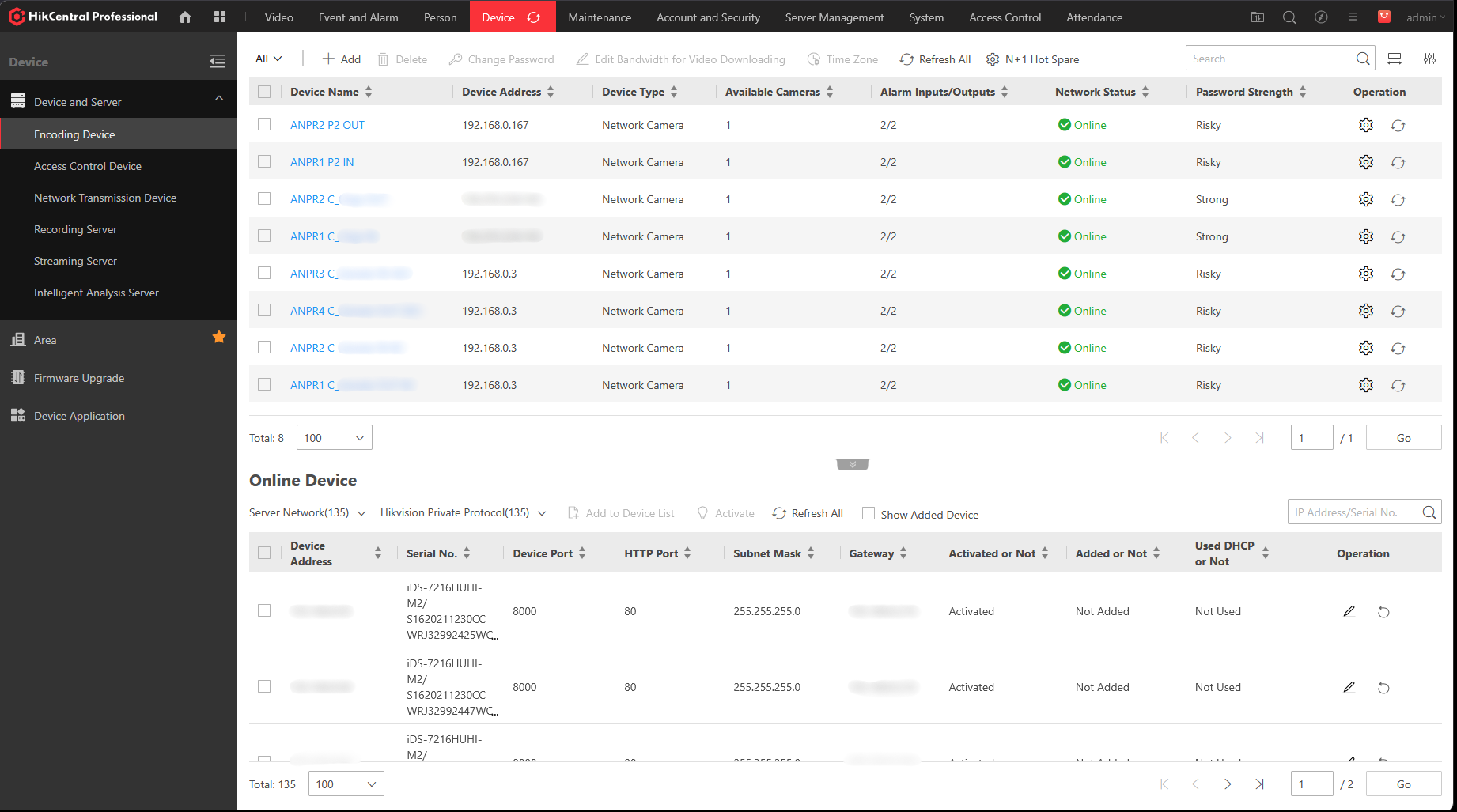

ANPR — LICENSE PLATE
8 camere IP ANPR integrate in platforma, cu recunoastere automata si actiuni configurate la detectia vehiculelor autorizate/neautorizate.
8 ANPR IP cameras integrated into the platform, with automatic recognition and configured actions on authorized/unauthorized vehicle detection.
- 8 camere ANPR — toate OnlineANPR cameras — all Online
- Acoperire puncte intrare + iesireEntry and exit point coverage
- Whitelist vehicule + relay automat barieraVehicle whitelist + automatic barrier relay
- Jurnal intrari/iesiri + alarme vehicul neautorizatEntry/exit log + unauthorized vehicle alerts
TIME & ATTENDANCE

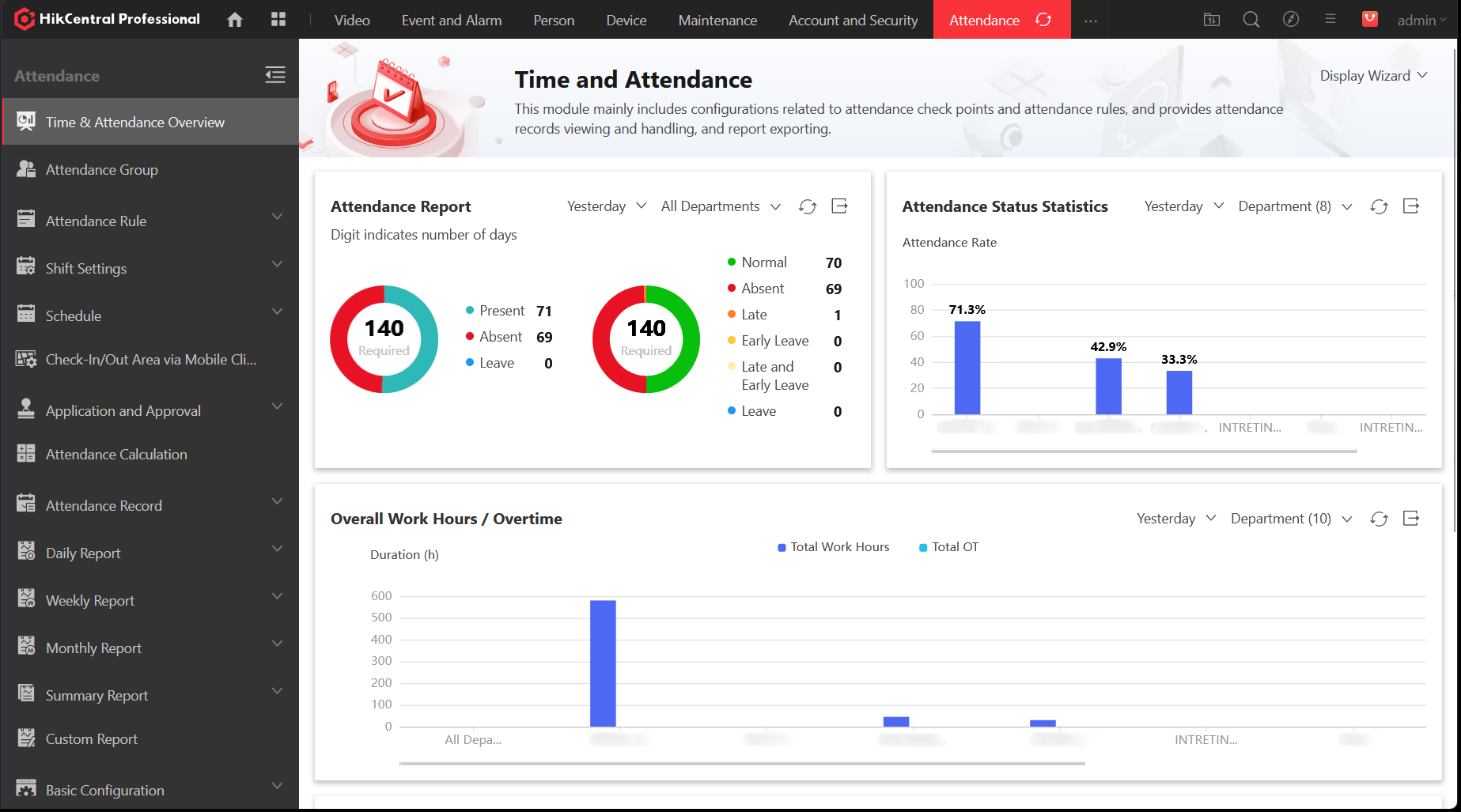

Modul pontaj complet integrat cu access control. 7 programe de lucru — ture de zi si de noapte — cu pauze, overtime si rapoarte HR exportabile.
Fully integrated T&A module. 7 work schedules — day and night — with breaks, overtime calculation, and exportable HR reports.

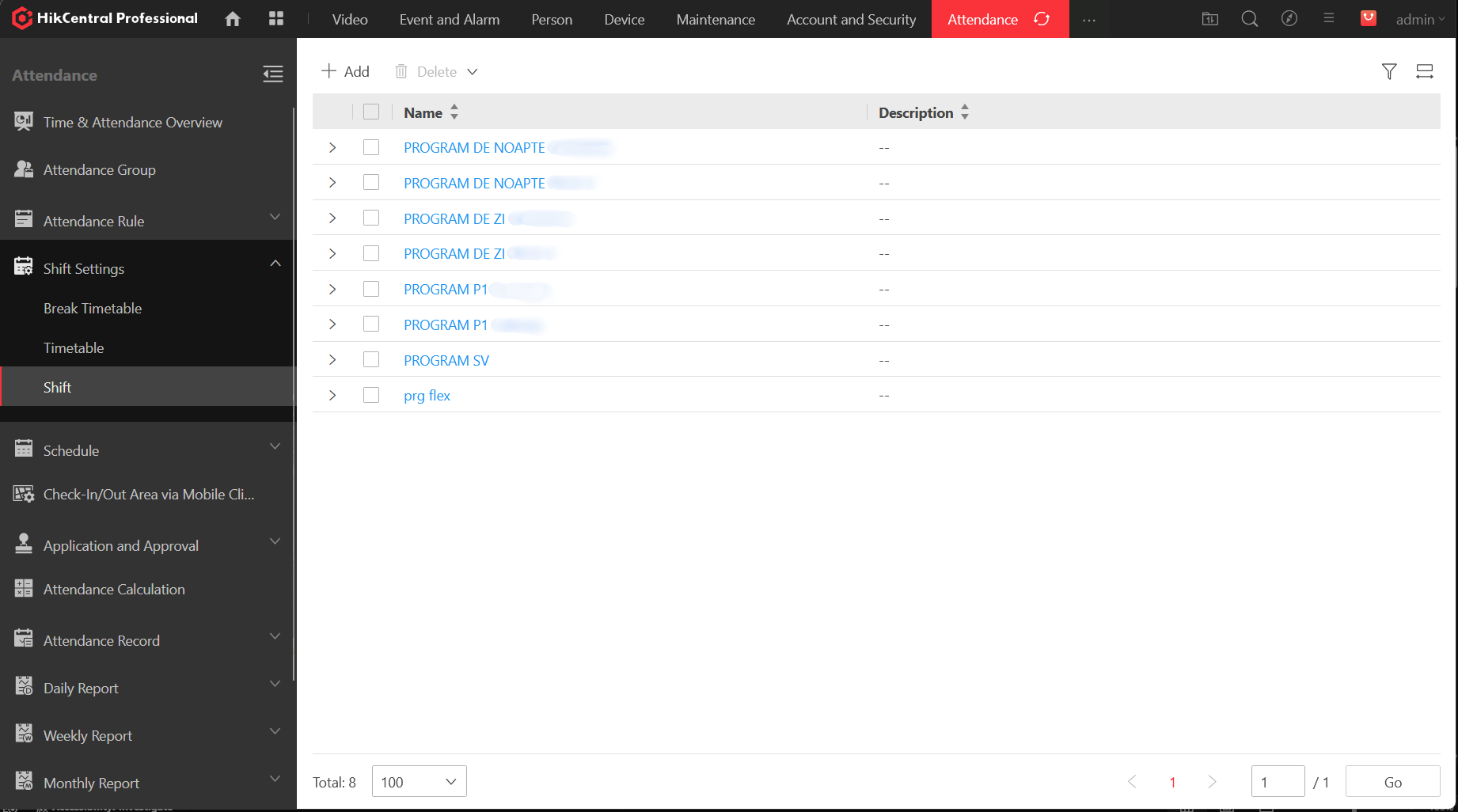

- 7 programe (Normal + Flexible Shift)schedules (Normal + Flexible Shift)
- Ture noapte cu depasire miezul noptii (+1 zi)Overnight shifts crossing midnight (+1 day)
- Pauze de masa configurabile per turaConfigurable lunch breaks per shift
- Transaction Log · Time Card · Overtime · Monthly ReportTransaction Log · Time Card · Overtime · Monthly Report
toate cu status Online
all with Online status

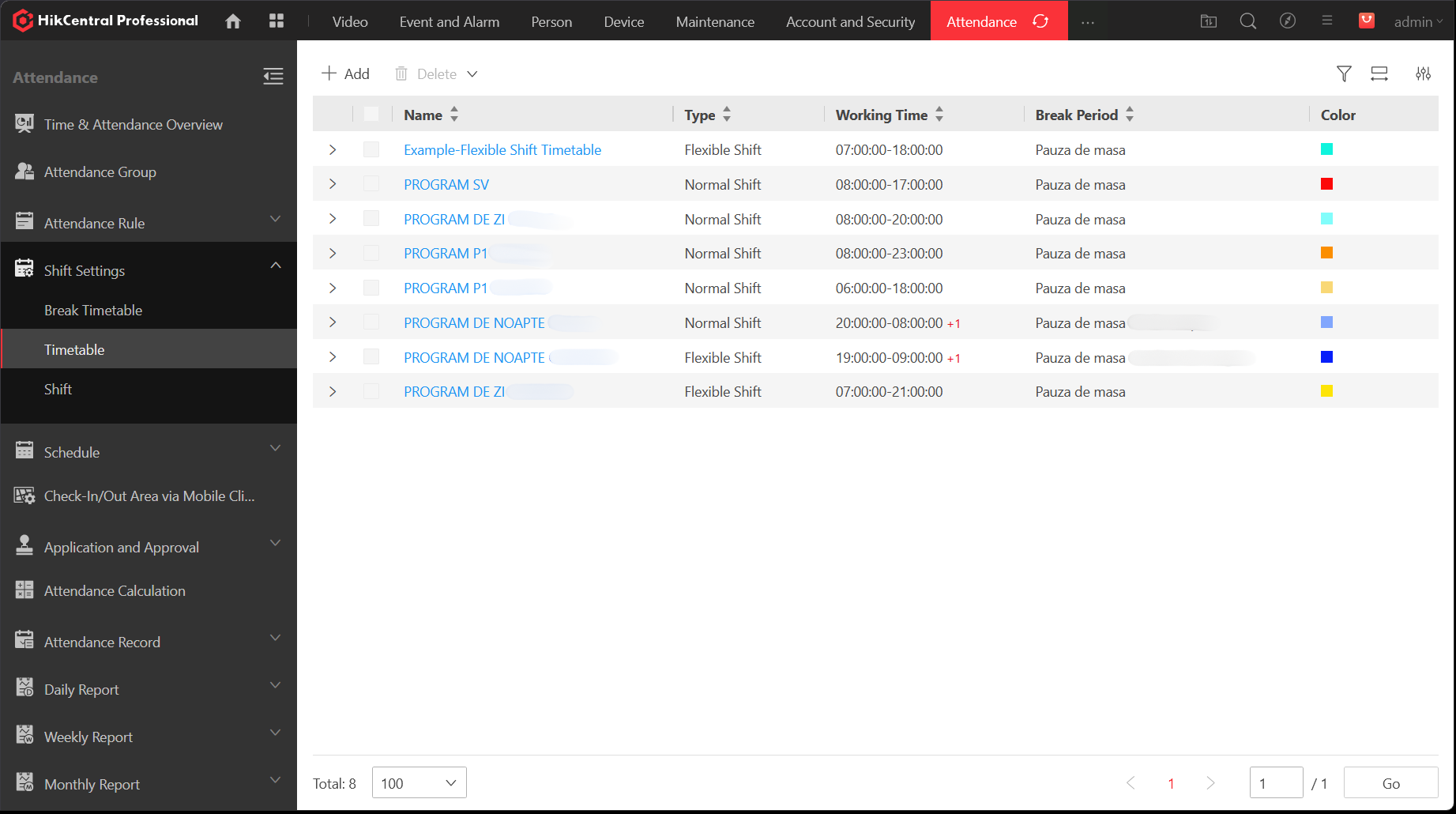

Una dintre cele mai complexe componente. Modulul de pontaj a fost configurat complet — de la timetable-uri cu intervale orare exacte (06:00–18:00, 08:00–20:00, 20:00–08:00 etc.) la shift-uri cu pauze de masa, schedule-uri pe departamente si rapoarte complete exportabile pentru HR.
One of the most complex components. The attendance module was fully configured — from timetables with exact intervals (06:00–18:00, 08:00–20:00, 20:00–08:00 etc.) shifts with lunch breaks, department schedules, and complete exportable HR reports.

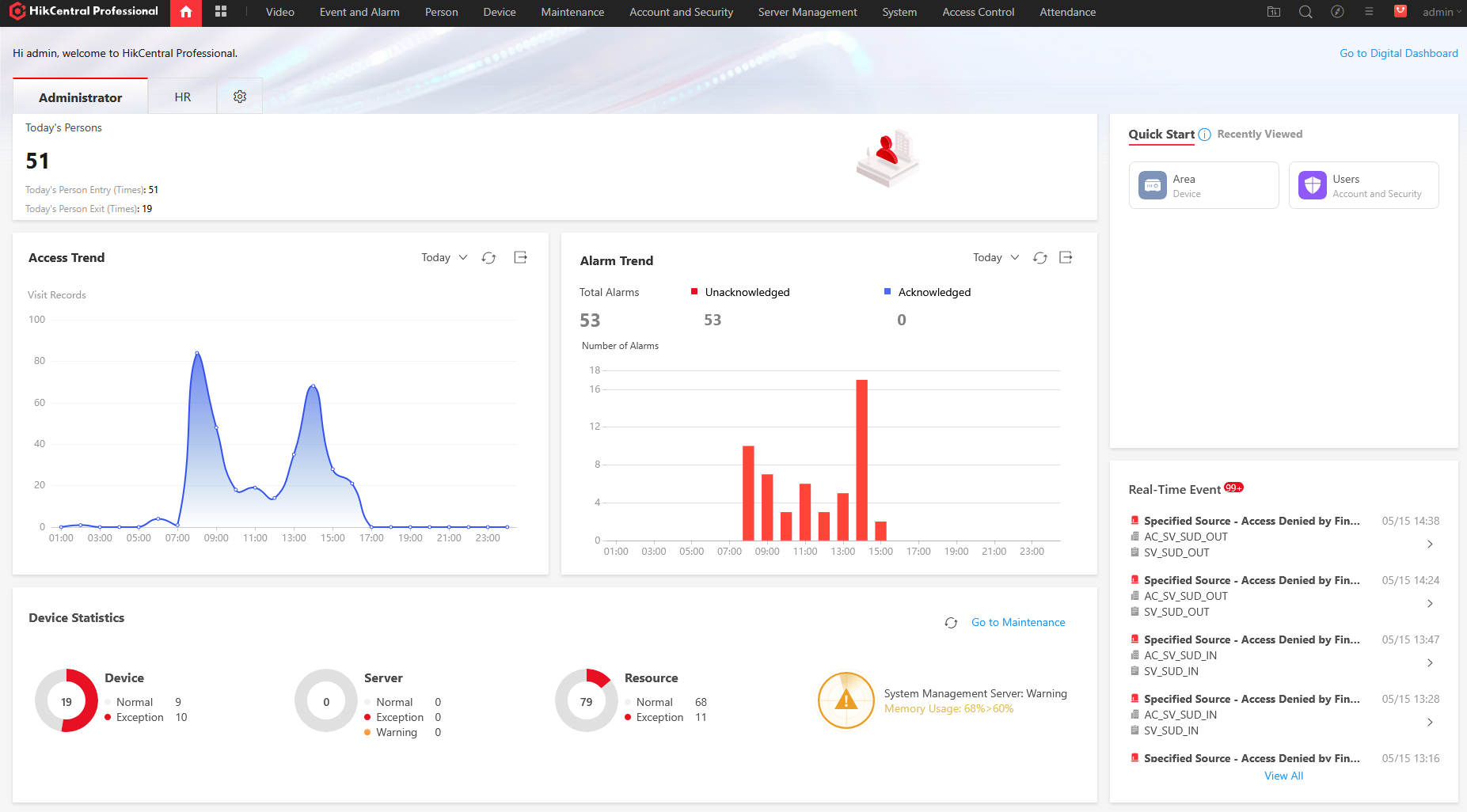

Consola centralizata — Video, Access Control, Attendance, Event & Alarm, Device, Maintenance intr-o singura interfata.
Centralized console — Video, Access Control, Attendance, Event & Alarm, Device, Maintenance in one interface.
Autentificare biometrica — 186 amprente pe 11 cititoare, management centralizat profile, sincronizare automata device-uri.
Biometric authentication — 186 fingerprints on 11 readers, centralized profile management, automatic device sync.

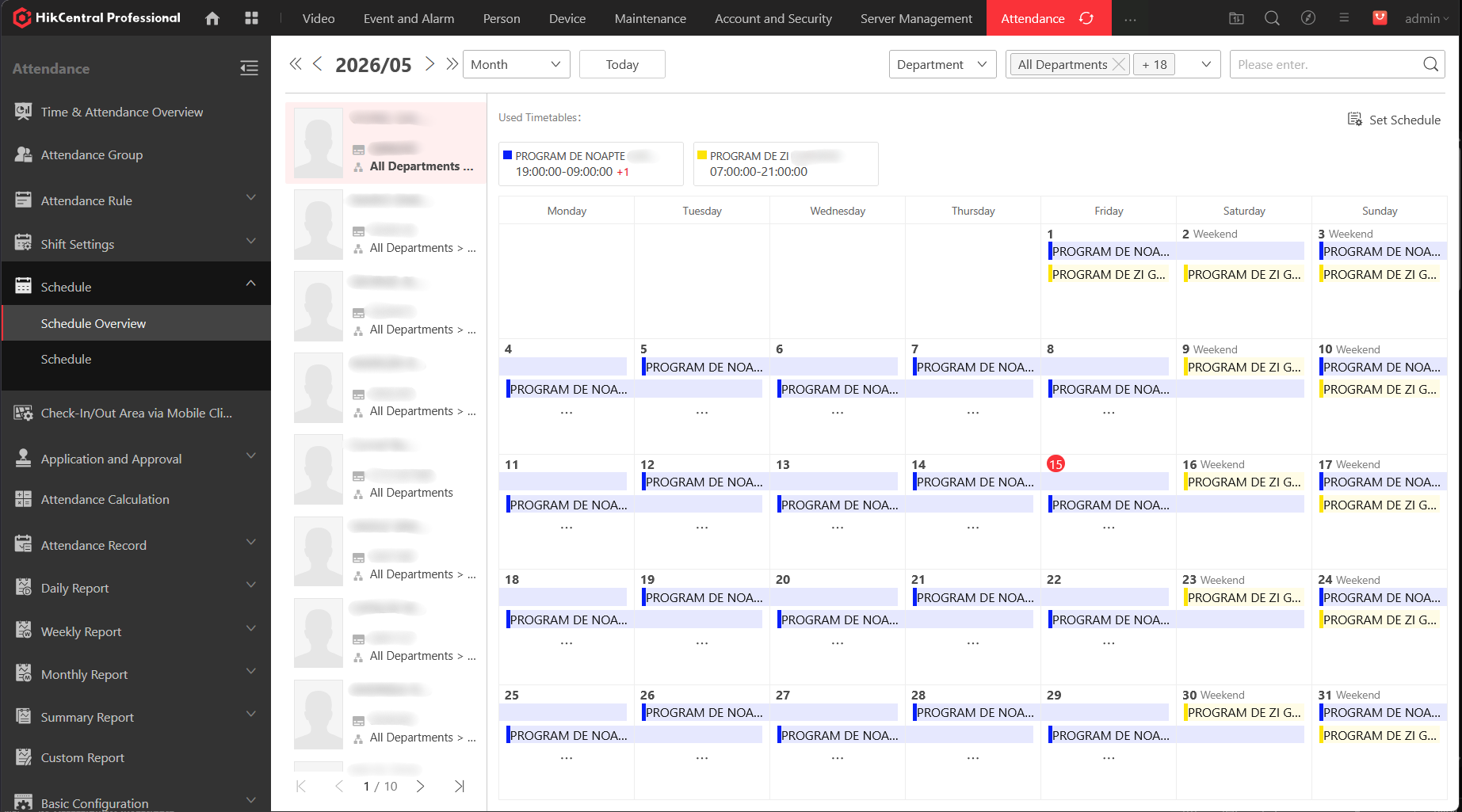

Ture normale — 7 programe cu intervale exacte, suport ture noapte cu depasire miezul noptii (+1 zi).
Normal shifts — 7 schedules with exact intervals, overnight shift support crossing midnight (+1 day).
ANPR + relay automat — recunoastere numar inmatriculare cu deschidere automata bariera/poarta, fara interventie umana.
ANPR + auto relay — license plate recognition with automatic gate/barrier opening, no human intervention.

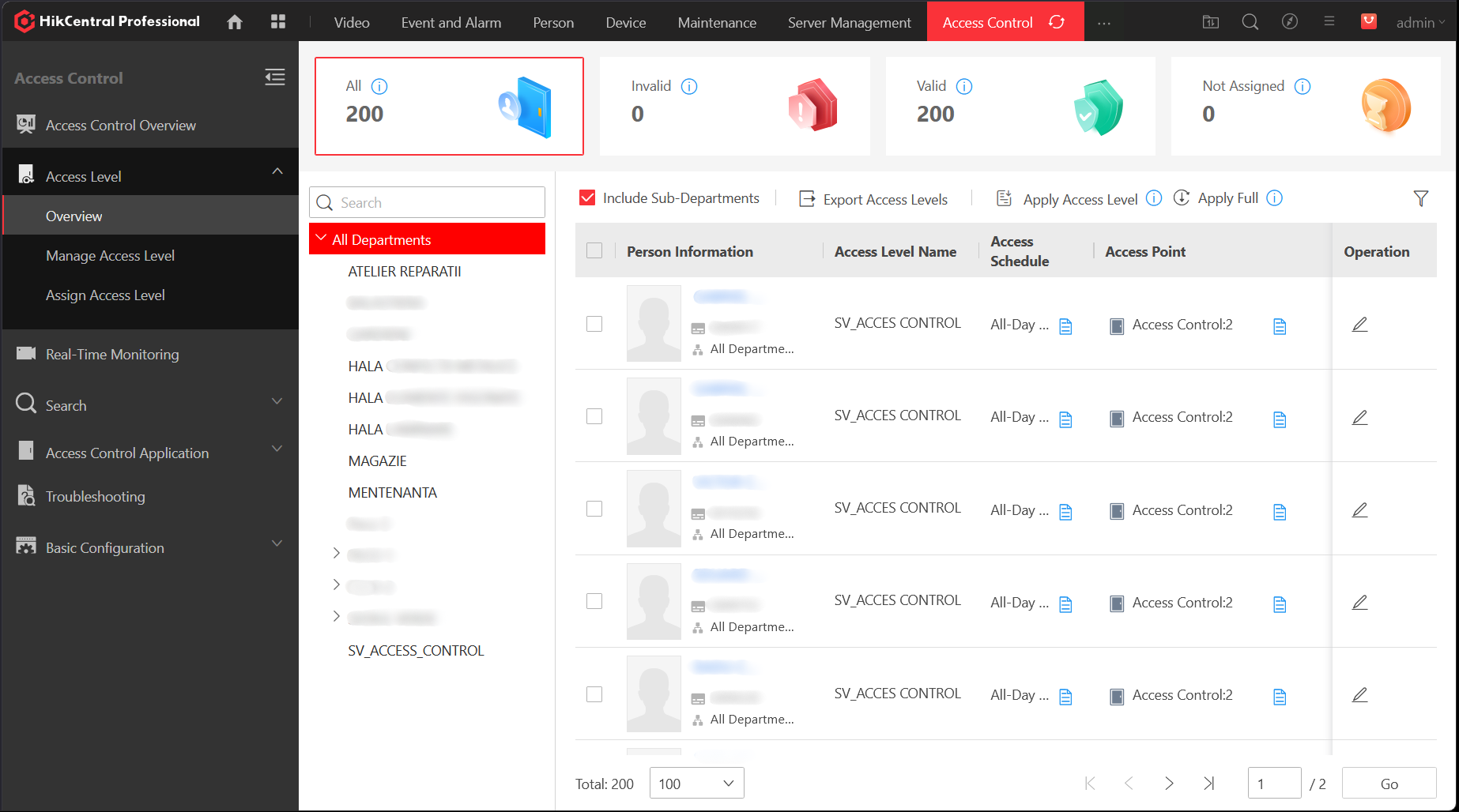

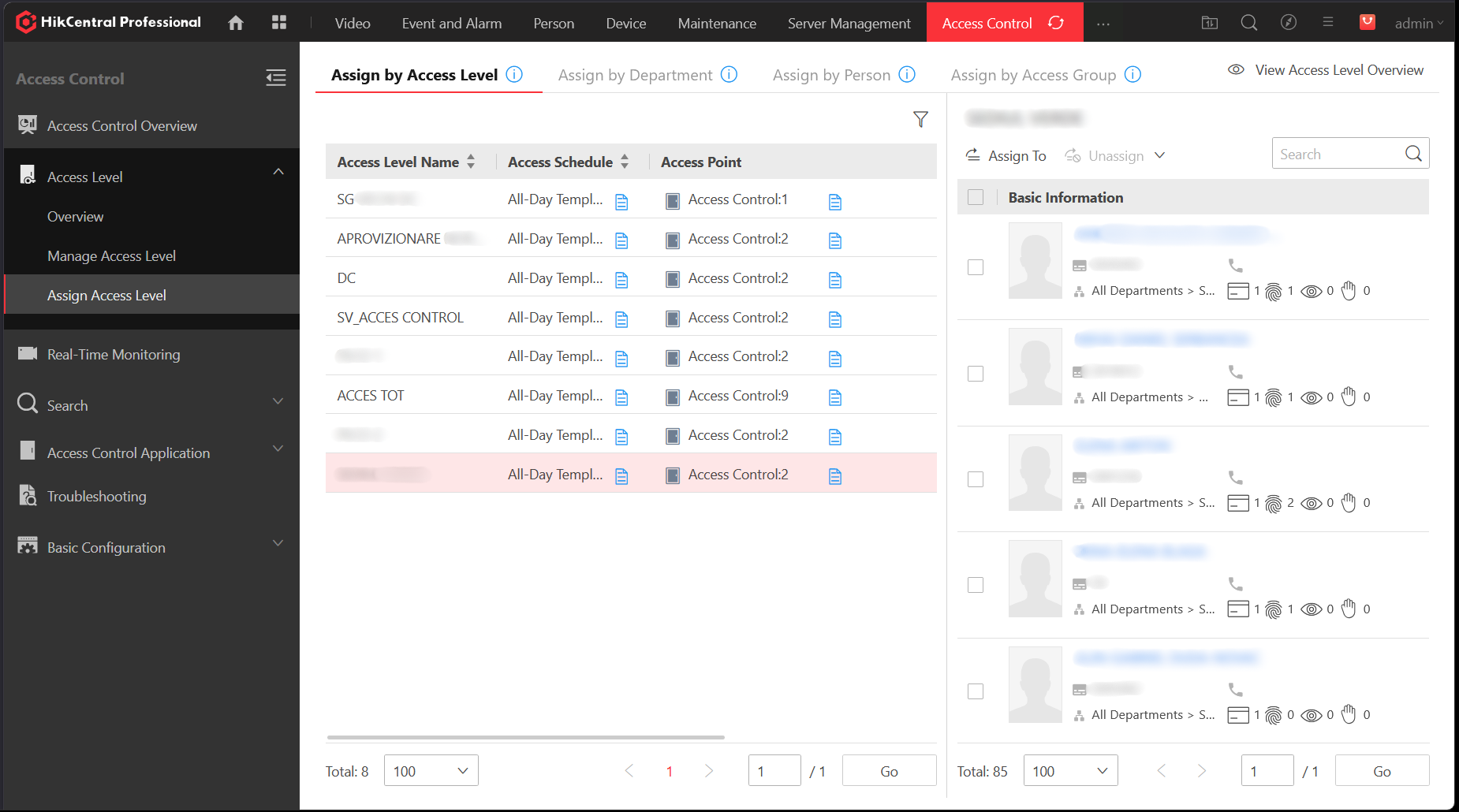

Permisiuni granulare — 8 niveluri cu schedule dedicat, assign pe persoana, departament sau grup de acces.
Granular permissions — 8 levels with dedicated schedules, assignable by person, department, or access group.

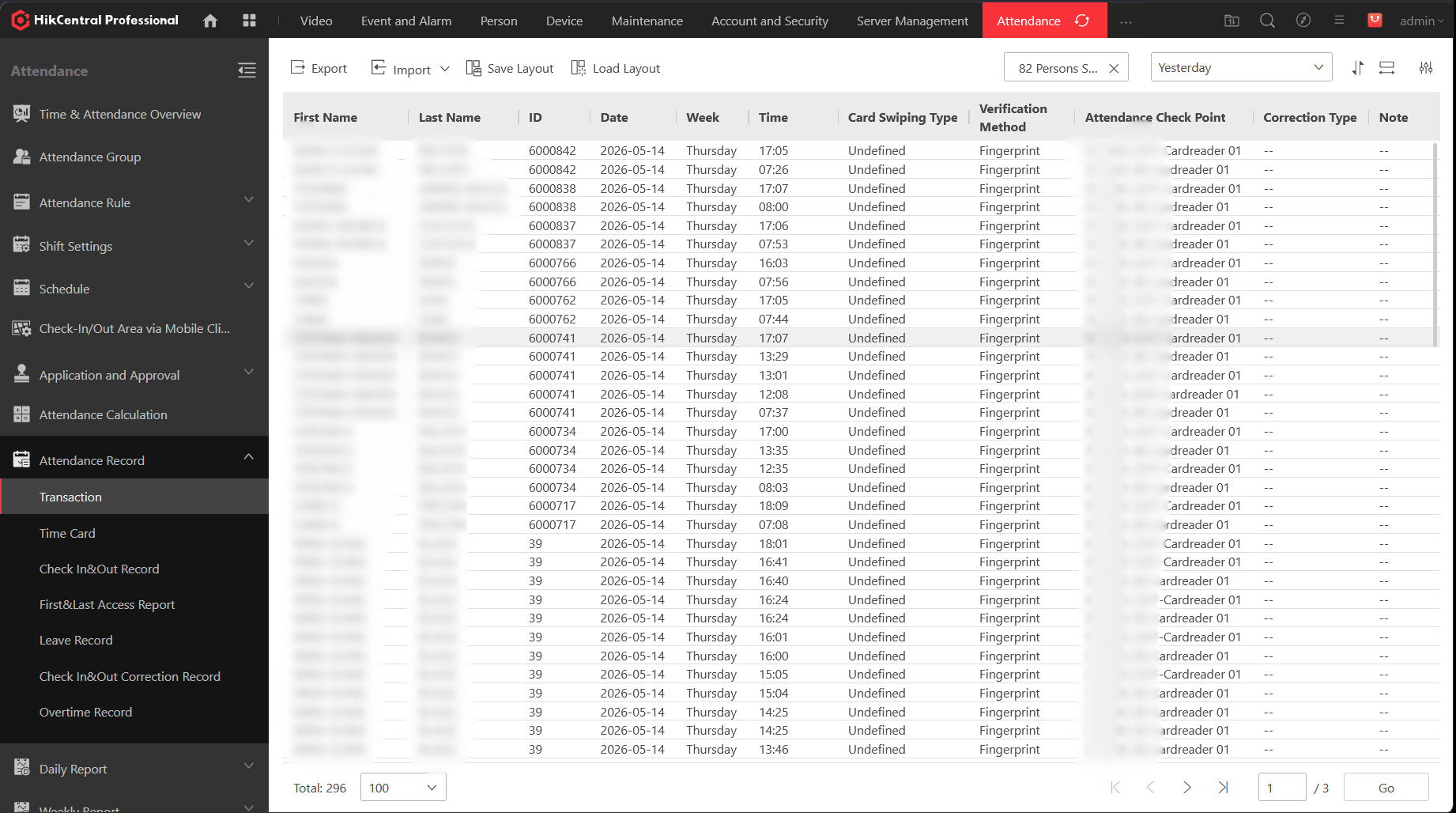

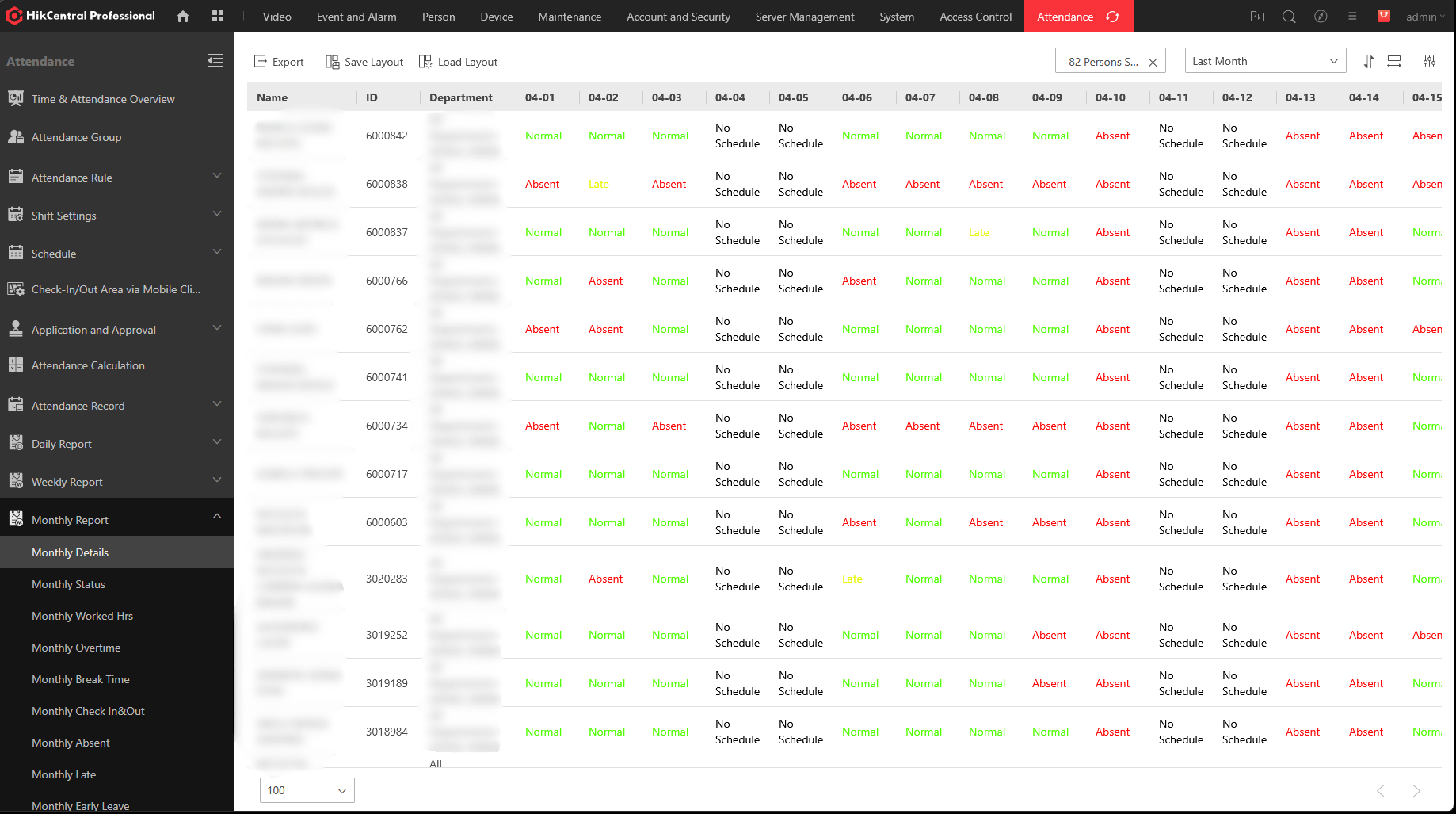

Raportare completa — Time Card, Transaction Log, First & Last Access, Overtime Record, rapoarte zilnice/saptamanale/lunare.
Full reporting — Time Card, Transaction Log, First & Last Access, Overtime Record, daily/weekly/monthly exports.

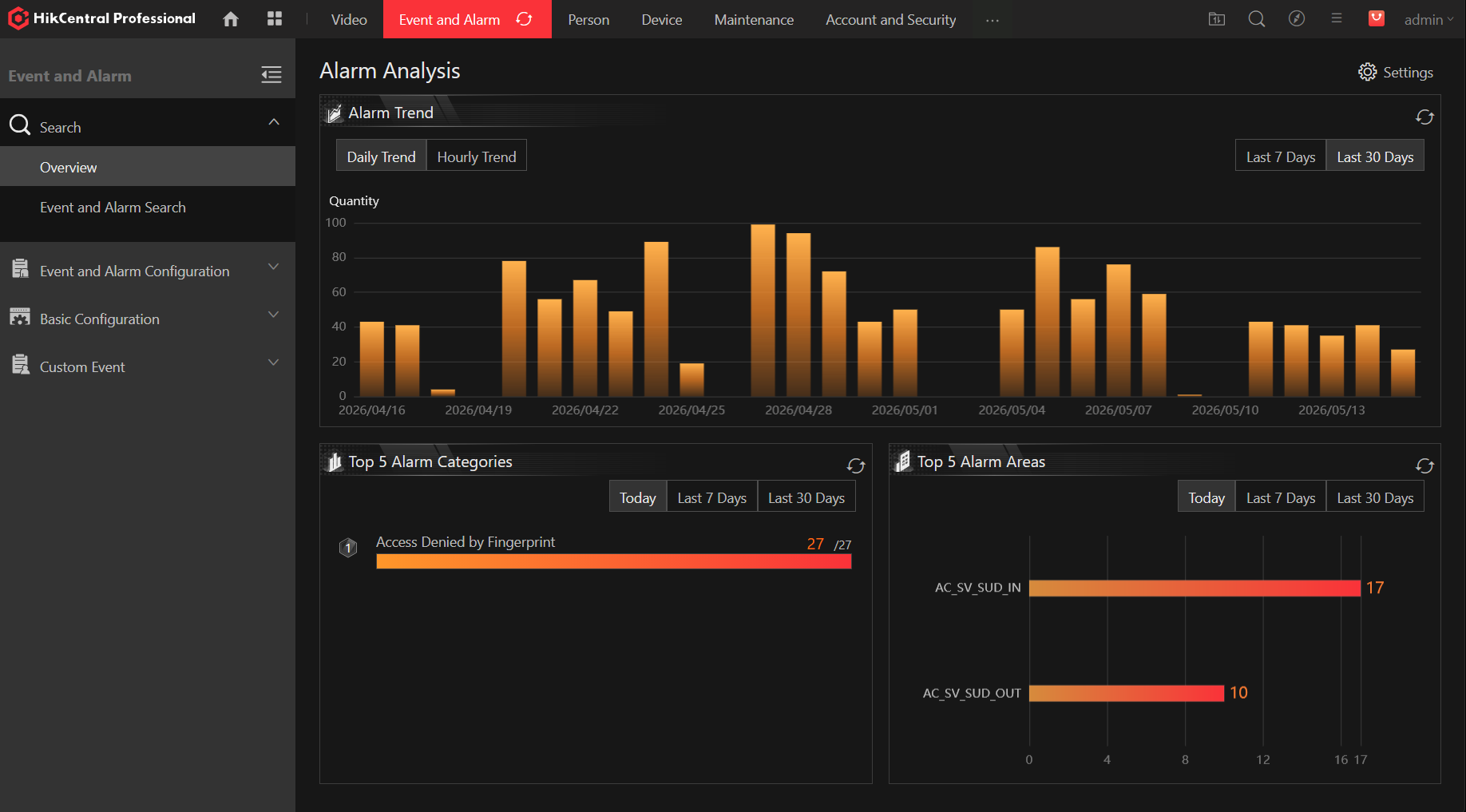

Sistem alarme — alerte acces refuzat, usa fortata, vehicul neautorizat, trend si analiza pe 30 de zile.
Alarm system — denied access, forced door, unauthorized vehicle alerts, 30-day trend analysis.
Securitate & roluri — configurare securitate cont administrator, roluri si permisiuni pe platforma HikCentral.
Security & roles — admin account security setup, roles and permissions on the HikCentral platform.
- Proiectare arhitectura sistem si plan de implementare
- System architecture design and implementation plan
- Instalare si configurare server HikCentral Professional
- HikCentral Professional server installation and configuration
- Adaugare, configurare si testare 11 cititoare biometrice
- Adding, configuring, and testing 11 biometric readers
- Integrare si calibrare 8 camere ANPR cu actiuni automate relay
- Integration and calibration of 8 ANPR cameras with automatic relay actions
- Inrolare 200 persoane — carduri, amprente, organizare departamente
- Enrollment of 200 persons — cards, fingerprints, department setup
- Configurare 8 niveluri de acces cu schedule si puncte de acces
- Configuration of 8 access levels with schedules and access points
- Configurare completa modul pontaj: timetable, shift-uri, schedule-uri, reguli globale
- Full T&A module setup: timetable, shifts, schedules, global rules
- Configurare sistem alarme, reguli notificare si analiza evenimente
- Alarm system setup, notification rules, event analysis
- Testare end-to-end, punere in functiune si instruire administratori
- End-to-end testing, commissioning, and admin training
Proiect realizat integral — de la design la punere in functiune — fara suport extern. Sistemul ruleaza in productie si este activ utilizat.
Project delivered end-to-end — from design to commissioning — without external support. The system is live in production and actively in use.
